Hashimoto HC-507U Output Transformer 20W Single 5K,7K/16,8,4 for 6V6,6L6GCetc.

Hashimoto HC-507U Output Transformer 20W Single 5K,7K/16,8,4 for 6V6,6L6GCetc.

USD 205.49 USD

SKU: 9fTiITML

Condition: New

Tags: 20Watts at 50Hz 30 Days 30-45,000Hz (+/-2dB) Buyer Hashimoto HC-507U Japan Money Back Returns Accepted VT-30

Categories: Vintage Electronics

Specifications

Return Shipping Will Be Paid By	Buyer
All Returns Accepted	Returns Accepted
Item Must Be Returned Within	30 Days
Refund Will Be Given As	Money Back
MPN	HC-507U
Country/Region Of Manufacture	Japan
Brand	Hashimoto
Frequency Flattness	30-45,000Hz (+/-2dB)
Output Power	20Watts at 50Hz

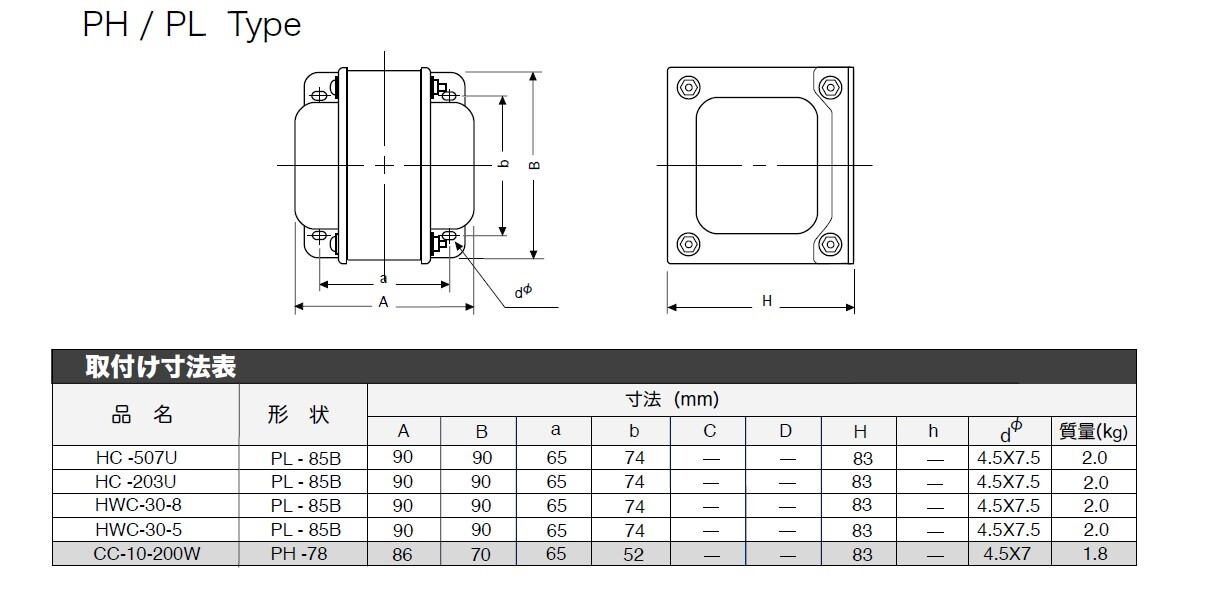

Prices are shown as a single price instead of a pair.Hashimoto Electric Co., Ltd. owns all the know-how of Sansui Transformers because the transfer of SANSUI transformers to Hashimoto in 1978 was a complete transfer including technical materials and design engineers. Specification Part Number HC-507URating Power (W) 20W at 50HzPrimary Impedance 5K, 7KΩSG Tap ProvidedSecondary Impedance 4,8,16ΩFrequency Range 30Hz～45kHz(+/-2dB)Insertion Loss 0.6dBPrimary Inductance 20H/70mA(5KΩ), 26H/60mA(7KΩ)Maximum Allowable DC Current 100mAOutline type PL-85BOutline(AxBxH : refer to Photo) 90mm x 90mm x 83mmScrew Size (mm) Refer to PhotoWeight 2.0KgAppricable Tube 6V6,6L6GC,6BQ5,6F6,KT-66,VT52,45
